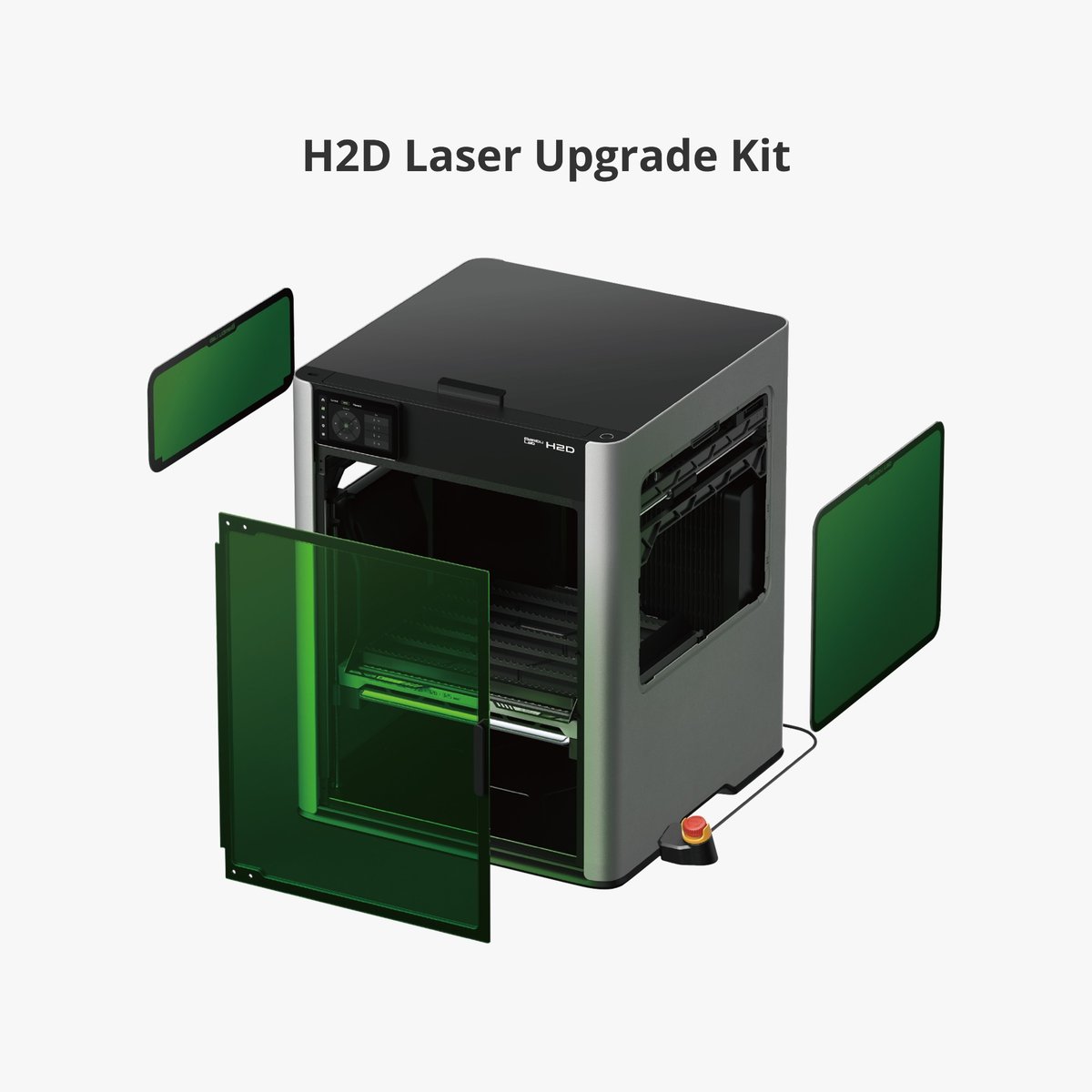

Bambu Lab H2 Laser Upgrade Kit

Bambu Lab H2 Laser Upgrade Kit For H2D/H2C

Laser Expansion • 10W or 40W Ready • Full Safety & Air Assist System

Add laser cutting and engraving capability to your H2 Series machine with the official H2 Laser Upgrade Kit. This kit includes the required hardware, safety components, air assist system, and installation parts needed to convert a compatible H2 printer to laser functionality.

Laser module is not included in this version.
Choose and purchase your 10W or 40W laser module separately.

Why Choose the H2 Laser Upgrade Kit

• Converts compatible H2 Series machines to full laser capability
• Supports both 10W and 40W blue laser modules (model dependent)
• Integrated air assist for cleaner cuts and improved surface finish
• Flame detection and enclosed safety system
• Designed specifically for factory-level fit and performance

This kit is ideal for customers who already own an H2 Series printer and want to expand into laser cutting and engraving without purchasing a separate machine.

Laser Power Options (Purchased Separately)

10W Laser Module
• Excellent for engraving and light cutting
• Cuts up to approx. 6mm basswood
• Max engraving speed: up to 400 mm/s
• Larger Y working area compared to 40W

40W Laser Module
• High-speed cutting performance
• Cuts up to approx. 15mm basswood
• Max engraving speed: up to 1000 mm/s
• Optimized for thicker materials and faster production

Compatibility Note:
• H2S supports 10W only
• H2D / H2C support both 10W and 40W

Key Features

High-Power 455nm Blue Laser Platform
Precision cutting and engraving across wood, rubber, leather, dark acrylic, thin metal sheet, stone, and more (material dependent on laser wattage).

Contactless 3D Mesh Height Measurement
Integrated optical height measurement system improves precision on uneven or curved surfaces.

Air Assist System Included
Directs airflow along the laser path to reduce burn marks and improve edge quality.

Flame Detection Safety System
Built-in flame monitoring sends alerts and enhances operational safety.

Enclosed Class 1 System (with Module Installed)
Laser module itself is Class 4. When installed correctly in the enclosed H2 system, overall classification is Class 1.

Compatibility

• Designed for Bambu Lab H2D, H2C, and H2S Laser versions
• H2S supports 10W only
• H2D / H2C support 10W and 40W

Please confirm your exact H2 model before ordering.

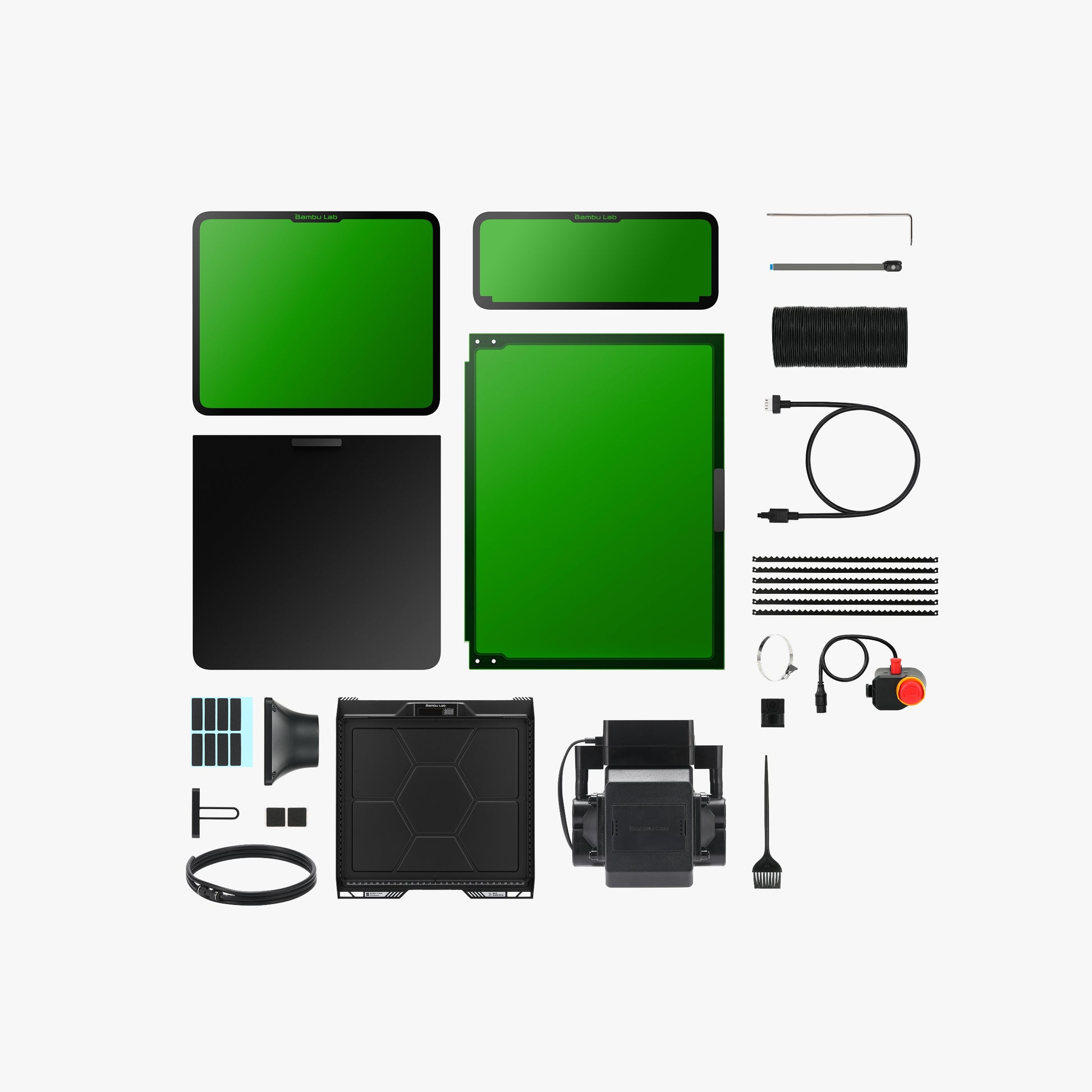

What’s in the Box (Upgrade Kit – No Laser Module)

Kit contents vary slightly by model (H2D/H2C vs H2S), but typically include:

• Laser safety windows (left, right, front as applicable)
• Top laser protection plate
• Laser platform
• Air pump
• Air assist tubing
• Smoke ventilation pipe
• Ventilation pipe adapter
• Pipe clamp
• Slats
• Birdseye camera
• Emergency stop button
• External air pump cable
• Allen key
• Material pin
• Brush
• Sealing stickers
• Cable organizer

Laser module must be purchased separately (10W or 40W).

Installation & Setup

• Advanced installation process — review official documentation before purchase
• Installation requires partial machine disassembly
• Ensure correct kit selection for your H2 model
• Confirm proper ventilation setup prior to laser use

We recommend pairing with the Bambu Smoke Purifier or proper external ventilation for optimal air management.

Safety Notes

• Do not leave machine unattended during laser operation
• Keep flammable materials away from the workspace
• Maintain regular cleaning to prevent dust accumulation
• Follow all machine and material safety guidelines

Policy

Accessories and upgrade kits are final sale. Approved returns (if any) must be unused and unopened. Restocking fees and shipping are non-refundable.
