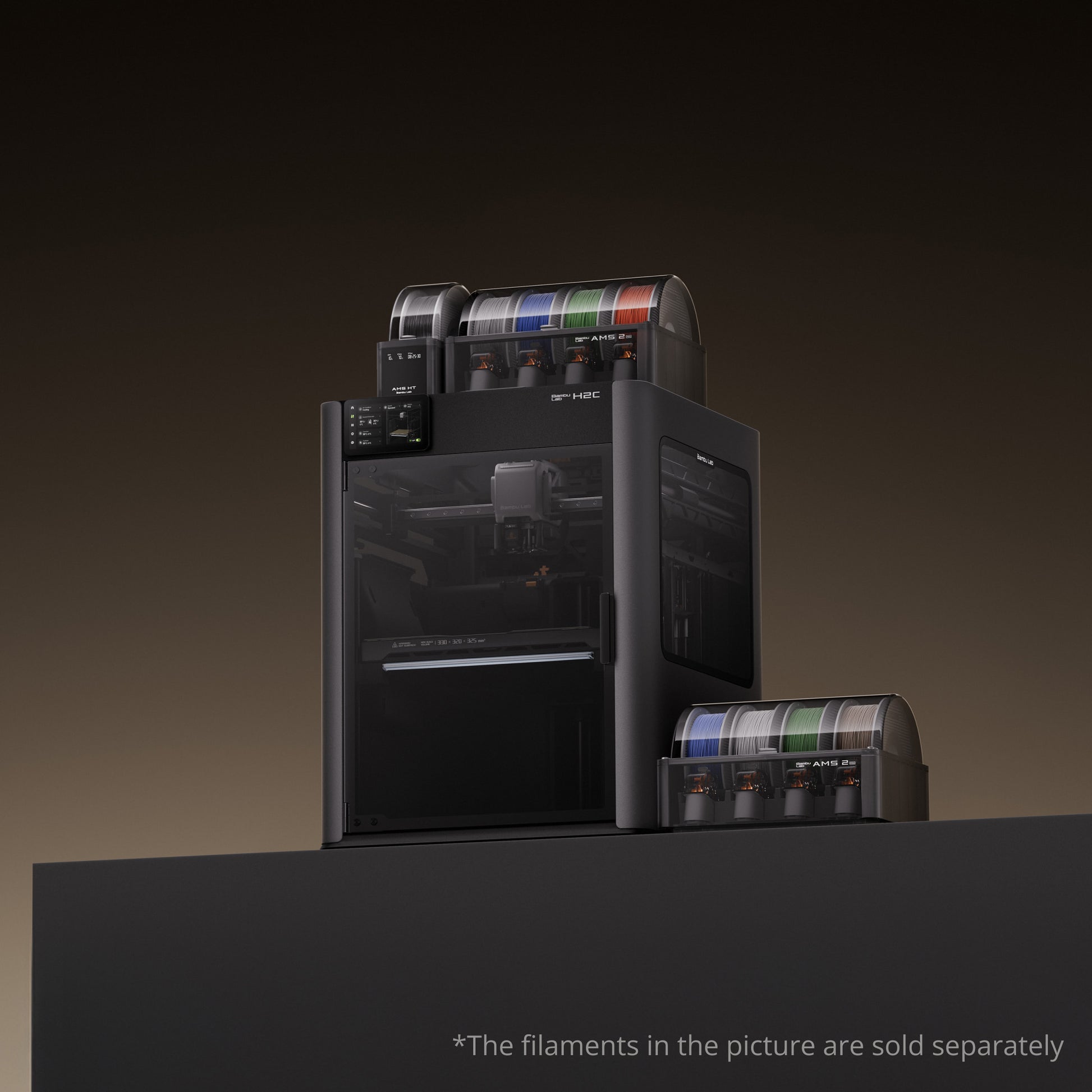

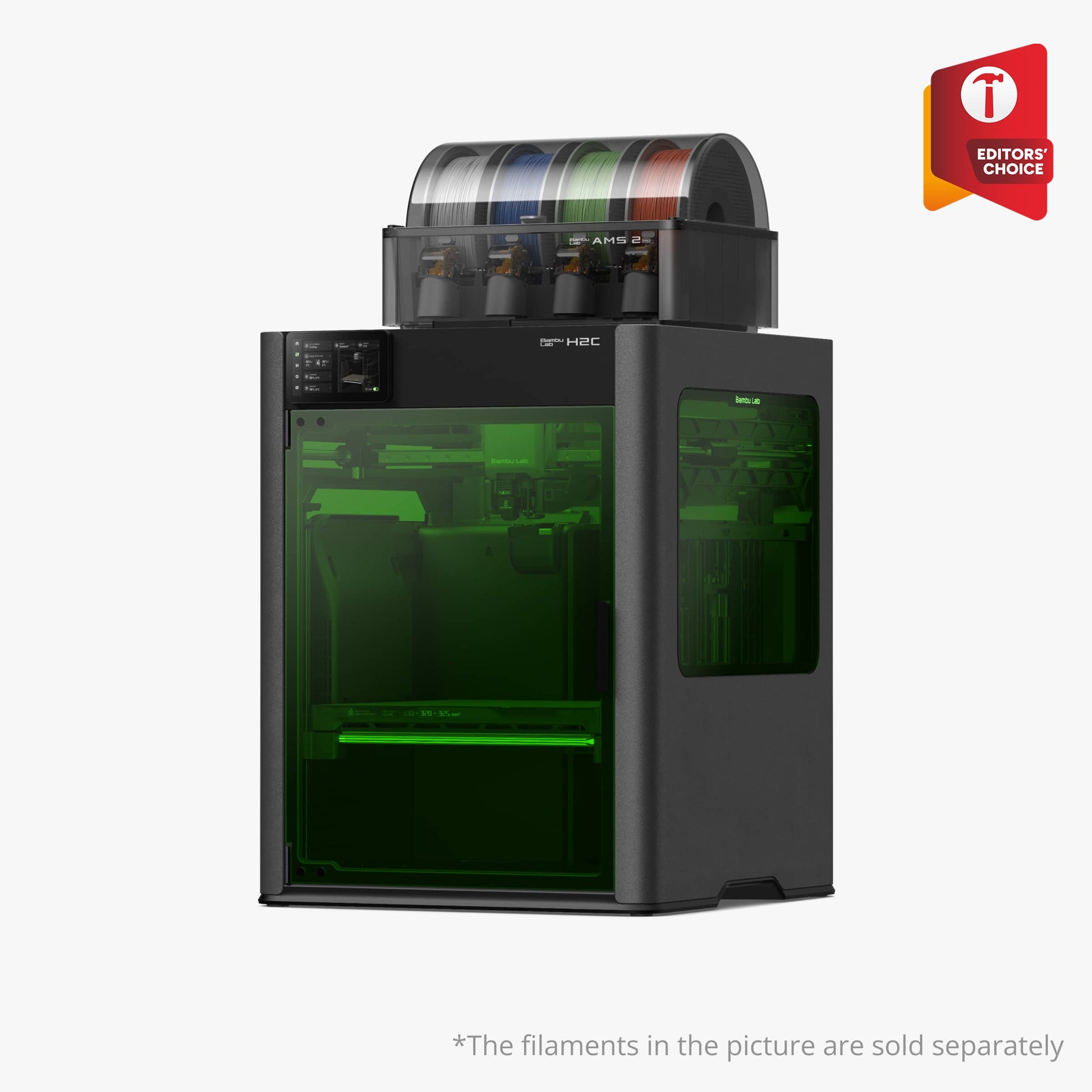

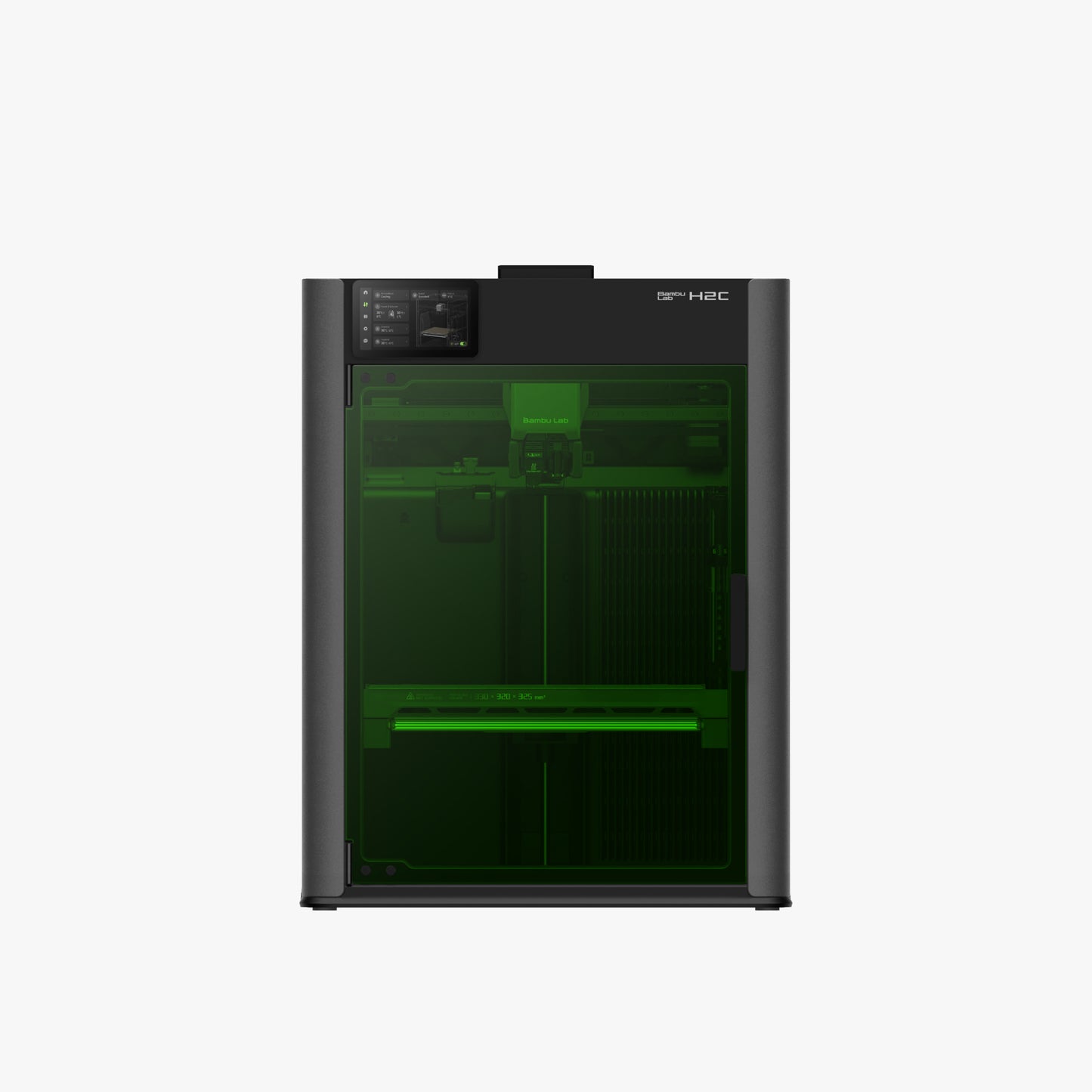

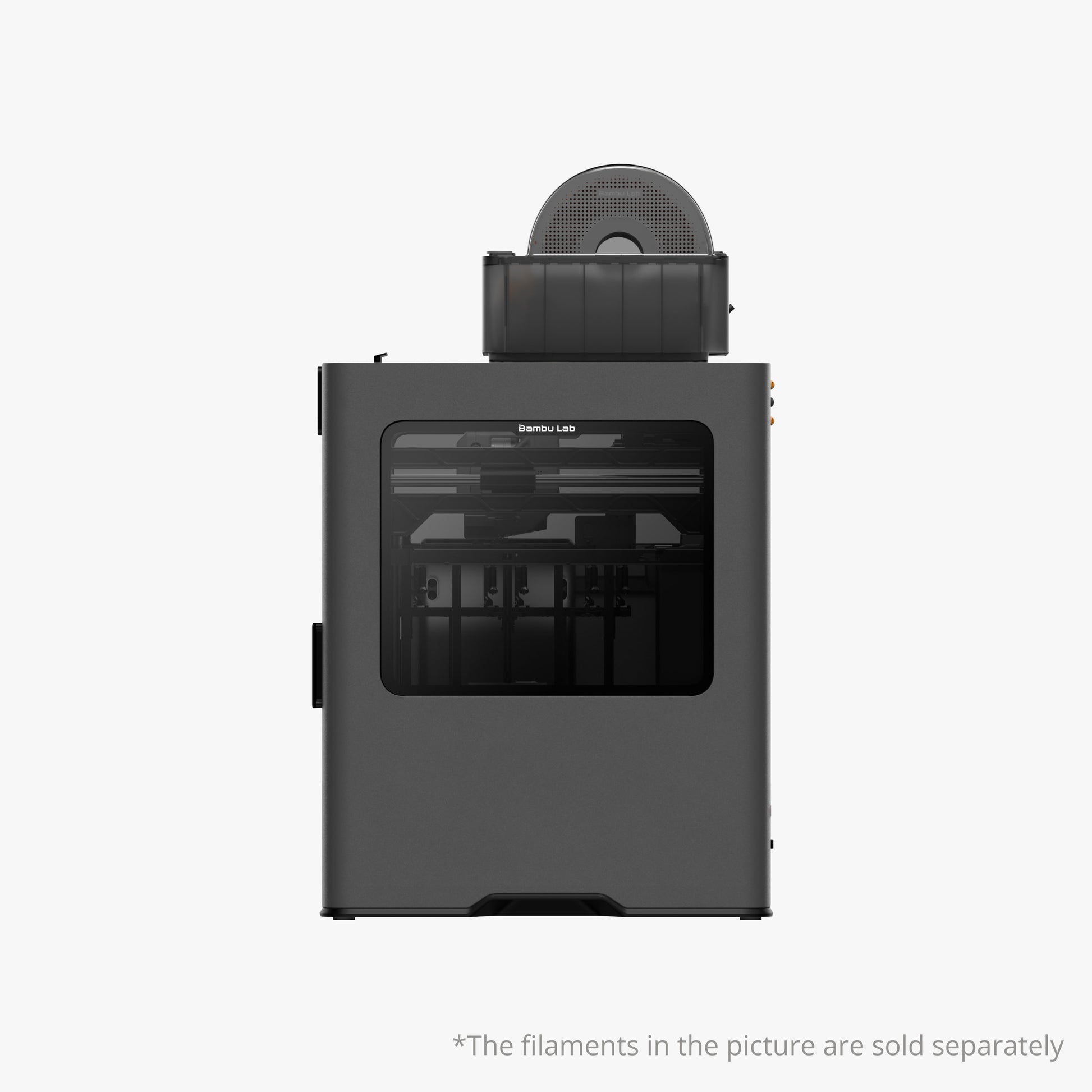

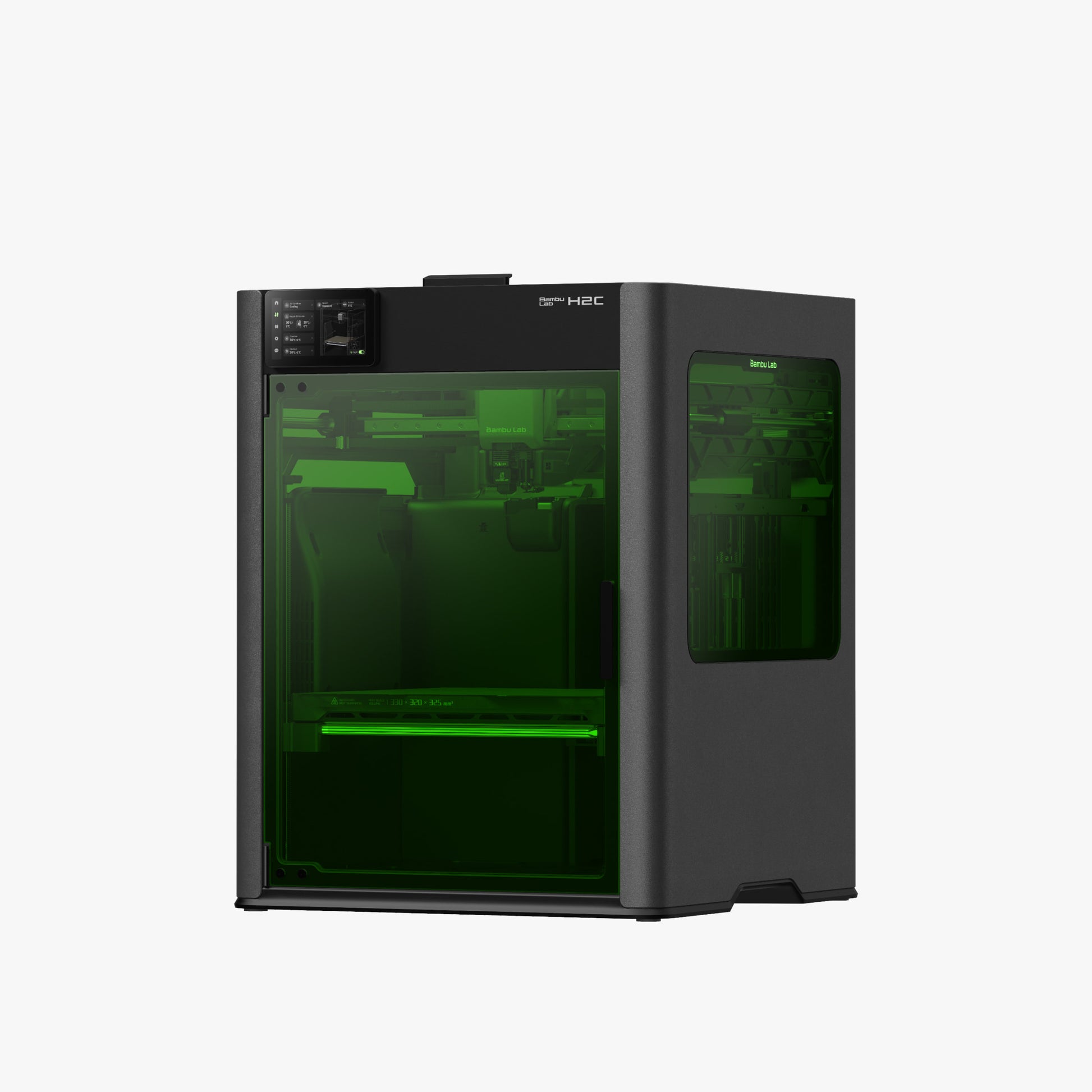

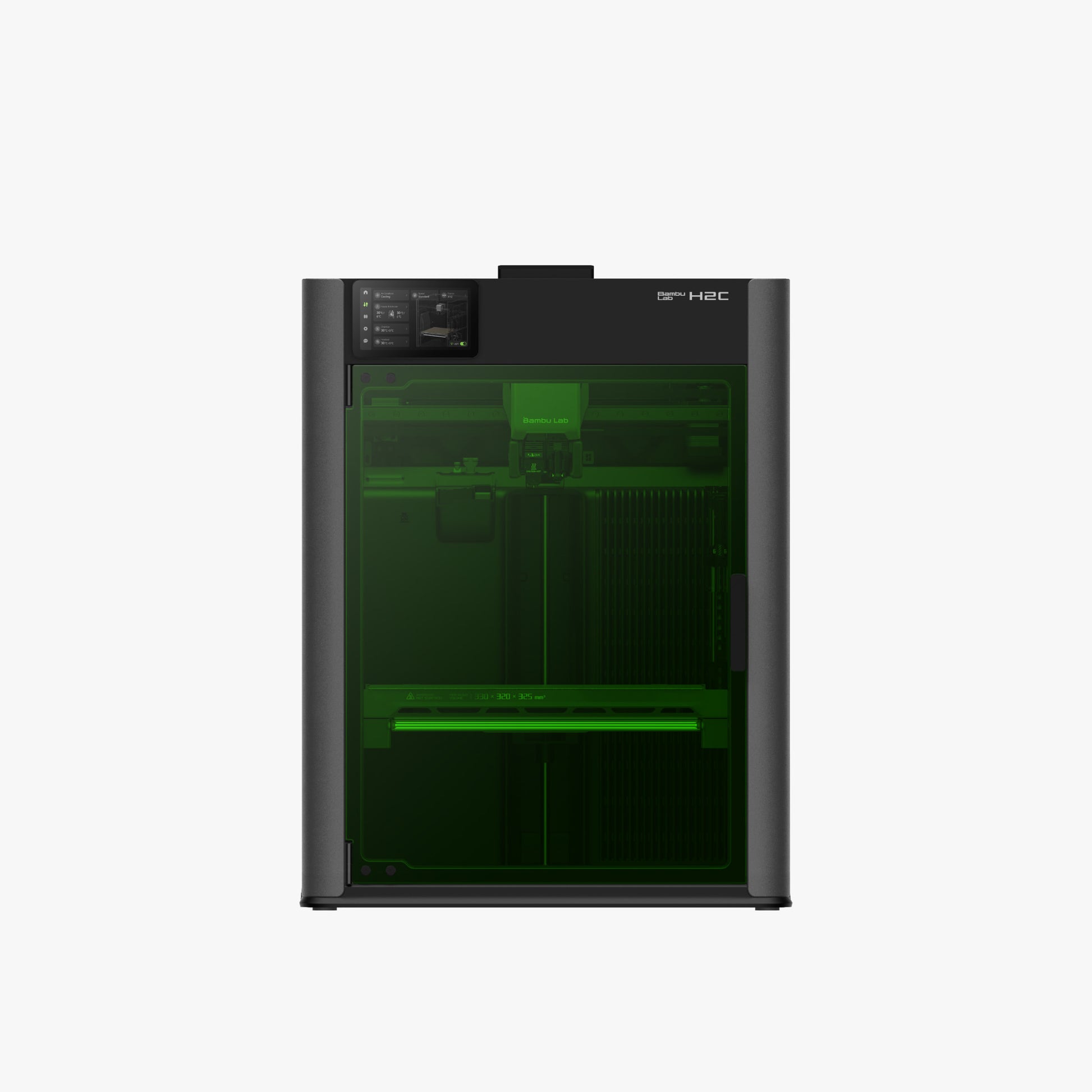

Bambu Lab H2C Laser Full Combo

Bambu Lab H2C Laser Combo — Multi-Material Printing with Integrated Laser (10W or 40W)

The Bambu Lab H2C Laser Combo combines advanced multi-material 3D printing with an integrated laser engraving and cutting system in a single enclosed production platform. Built on the H2C’s hotend-change architecture, this system is designed for users who need to print complex multi-material parts and perform laser operations without moving work between machines.

The Laser Combo retains the H2C’s purge-saving, hotend-change workflow while adding a fully enclosed, safety-controlled laser system available in 10-watt or 40-watt blue diode configurations.

Core design advantage — hotend change + laser integration

The H2C Laser Combo uses the Vortek hotend-change system with seven hotend positions:

• Six right-side induction hotends dedicated to individual filaments
• One left-side standard hotend typically used for support or specialty materials

Each filament has its own hotend, allowing true multi-material printing without constant nozzle purging. The laser module is integrated into the platform and designed to work within the same enclosed, filtered chamber.

This architecture enables users to produce printed parts, engraved surfaces, and cut components as part of a unified workflow.

Key features

• Dedicated hotend-change system for multi-material printing
• Up to seven materials in a single print with minimal purge waste
• Integrated laser engraving and cutting capability
• Choice of 10W or 40W blue diode laser module
• Six induction-heated right-side hotends for rapid material switching
• One left-side standard hotend for support or specialty filament
• Hardened steel hotends and extruder gears
• Closed-loop servo extruder for consistent flow
• All-metal hotends rated up to 350 °C
• Active chamber heating up to 65 °C
• Fully enclosed, fire-retardant chamber with advanced air filtration

Laser system overview

• Semiconductor (blue diode) laser system
• 10W option: Fine engraving, light cutting, and detailed marking
• 40W option: Faster engraving and thicker material cutting
• Integrated air assist pump for cleaner cuts and reduced charring
• Enclosed Class 1 system with internal Class 4 laser module
• Visual XY positioning with lidar-based Z height measurement
• Flame detection, temperature monitoring, and door safety interlocks

Supported laser materials include wood, leather, rubber, coated metals, dark acrylic, stone, vinyl, paper, and similar materials.

Build volume and performance

• Total build volume (dual-nozzle): up to 330 × 320 × 325 mm
• Maximum toolhead speed: up to 1000 mm/s
• Maximum acceleration: up to 20,000 mm/s²
• Heated bed: up to 120 °C
• Filament diameter: 1.75 mm

Multi-material and AMS capability

• Designed for advanced multi-material workflows
• Supports AMS, AMS 2 Pro, and AMS HT
• Automatic filament handling with dedicated hotends
• 4-in-1 PTFE adapter required for multi-AMS configurations
• Capable of combining rigid, flexible, reinforced, and support materials in one job

Precision, safety, and monitoring

• Automatic nozzle offset calibration between hotends
• Active flow and vibration compensation
• Multi-camera monitoring with AI-based failure detection
• Three-stage air filtration (G3 pre-filter, H12 HEPA, activated carbon)
• Safety key, emergency stop, and laser module detection

Who the H2C Laser Combo is for

• Production environments combining printing and laser processing
• Engineering teams producing complex multi-material assemblies
• Schools and makerspaces needing enclosed, safety-controlled laser capability
• Advanced users replacing multiple machines with one integrated platform

What’s in the box (Laser Combo configuration)

• Bambu Lab H2C 3D printer (Laser Edition)
• Integrated laser module (10W or 40W, depending on option)
• AMS 2 Pro
• Textured PEI build plate
• Laser platform and cutting platform
• Air assist system and safety key
• Spool holder and accessory kit
