Lithophane LED Backlight Board Kit — Bring Photos to Light

For CMYK Lithophanes • 5V USB Power • Modular Design

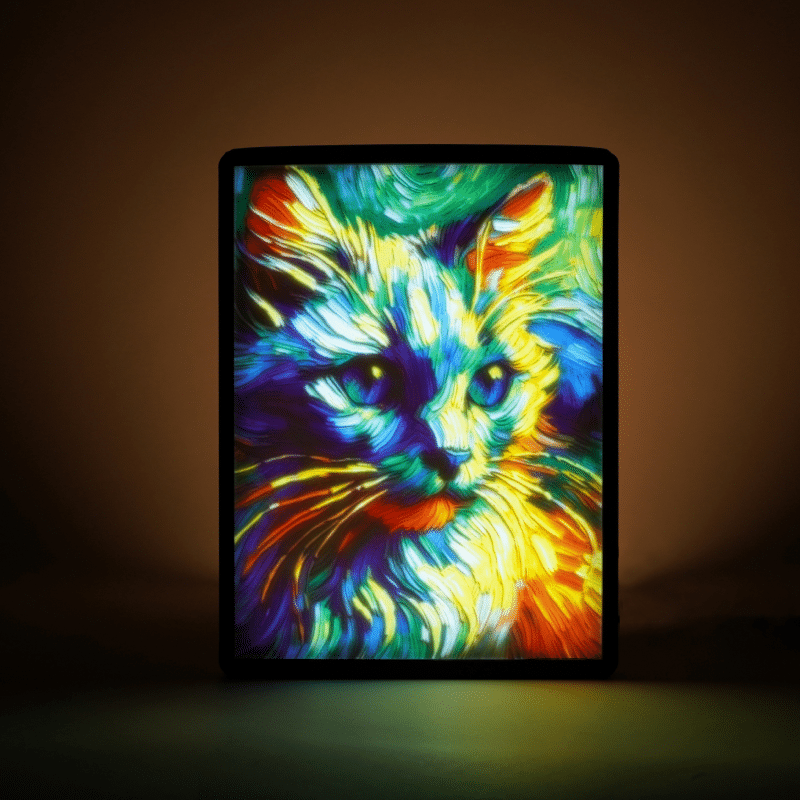

Light up your custom lithophane prints with the Lithophane LED Backlight Board Kit. Designed for use with the PLA CMYK Lithophane Bundle, it provides bright, even illumination to make your printed images come alive. Available in 2- or 4-panel configurations, this kit is perfect for home décor, gifts, or creative displays.

Note: Product does not include 3D printed parts shown in images.
The latest frame versions and portable photo stands are now available on MakerWorld.

Why you need it

• Brings lithophanes to life: Even 48-LED panels deliver vibrant backlighting
• Modular setup: Choose between 2-panel or 4-panel configurations
• Simple power: 5 V USB with on/off switch and dimming support (long-press to adjust brightness)
• Plug & play: Includes all required cables — no soldering or tools needed
• Perfect pairing: Designed for Colorful Lithophane with Frame and Mono Lithophane models

Compatibility & usage

• Works with: CMYK Lithophane Bundle / Make My Lithophane creations
• Power: 5 V DC / 2 A via USB (ON/OFF switch cable included)
• Connection: PH 2.0 × 2 connectors
• Models supported: Single or multiple frame configurations
• Recommended printers: Any printer capable of 0.08–0.12 mm layer height

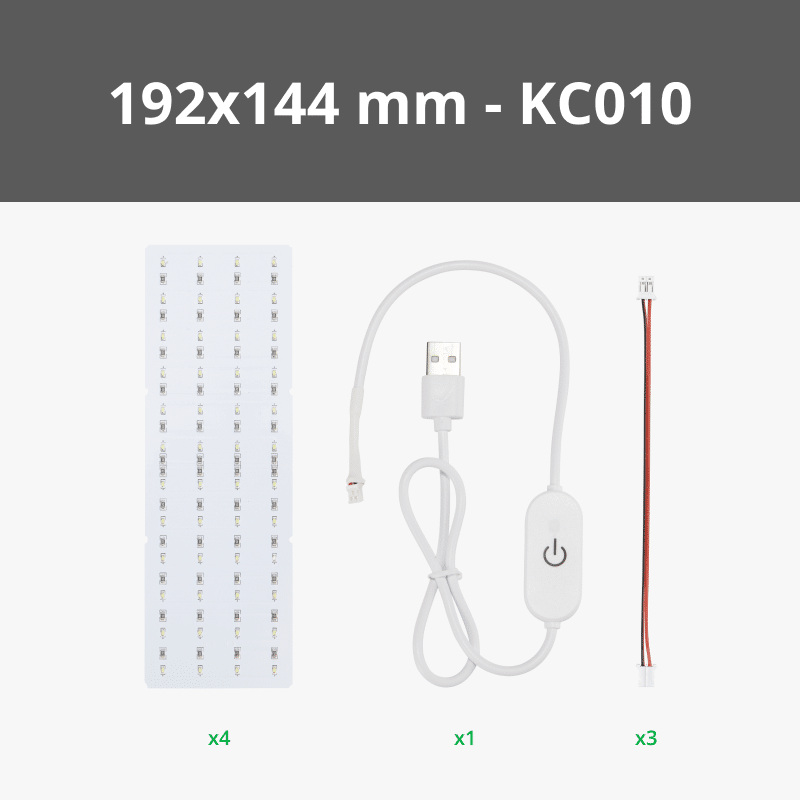

What’s in the box (4 PCS Kit – KC010)

• 4 × LED Backlight Boards
• 3 × PH 2.0 Power Cables
• 1 × USB to PH 2.0 Cable with ON/OFF Switch

Print & setup tips

• Use 0.2 mm or smaller nozzles, and 0.08–0.12 mm layer height for best detail
• Heated bed: 45–50 °C to reduce warping
• Some color deviation is normal due to print-layer limits
• See the CMYK Lithophane Printing Guide on the official Wiki for tuning advice

Technical specs
