Wireless Charger Kit — Build Your Own A1 Mini or “Air Force Command HQ” Charger
Wireless Power • Animated Z-Axis • MakerWorld Compatible

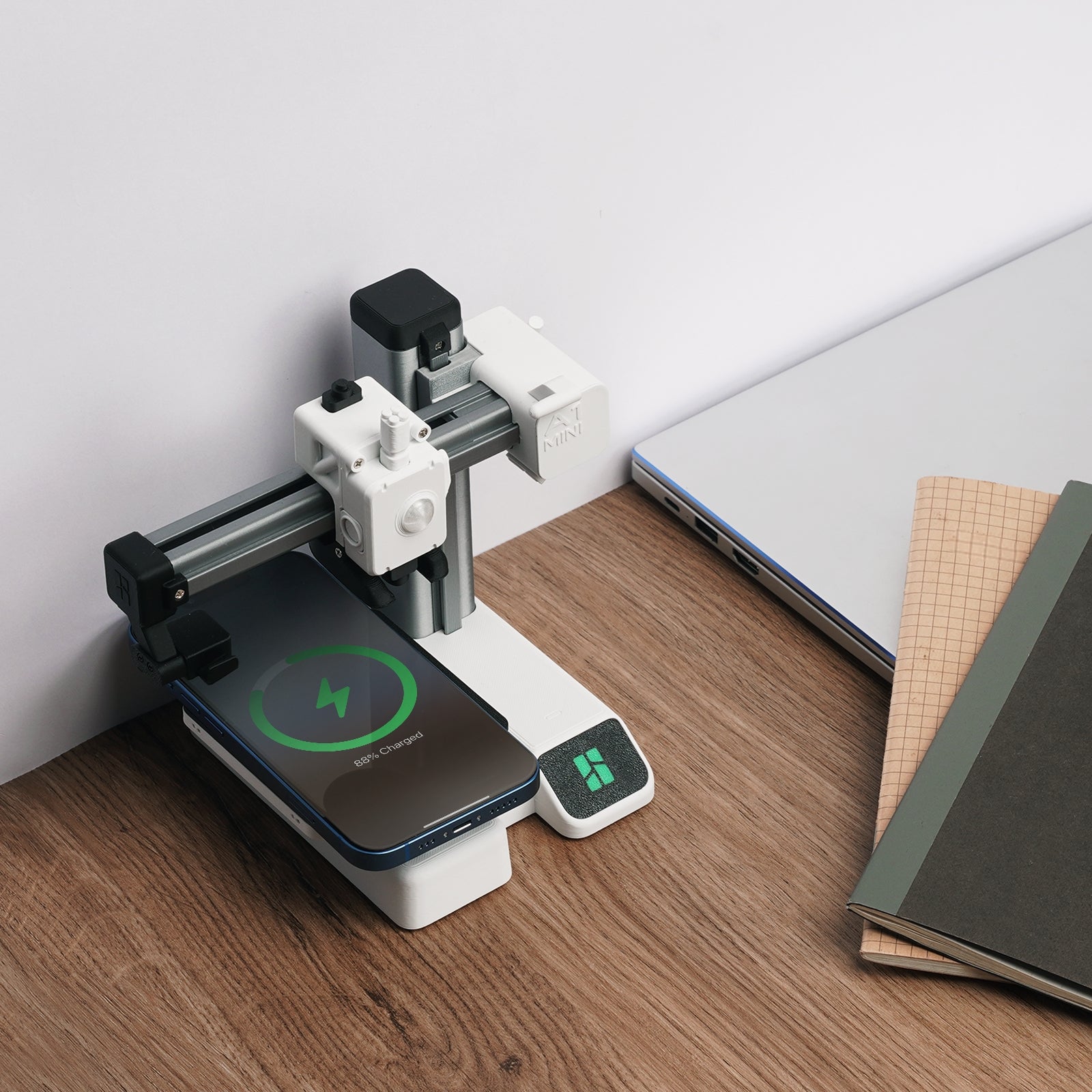

Note: Product does not include the 3D-printed parts shown in the main image.
Download the model files and assembly guides from MakerWorld:
Overview
Turn your 3D prints into a working wireless charger with movement and light effects. The Wireless Charger Kit provides all the electronics and hardware required to assemble the A1 Mini or Air Force Command HQ models. Simply 3D print the body, connect a Type-C cable, and watch your charger come alive — complete with moving Z-axis simulation, LED lighting, and power mode selection for safe charging.
Features
• Interactive charging animation: The Z-axis moves up and down to mimic printing as your phone charges.
• Smart dual power modes: Switch between high and low power to prevent overheating or filament warping.
• Multiple drive modes: Seven total modes (1–7) for different motion and lighting patterns.
• Touch-controlled LED lighting: Logo and indicator lights illuminate during operation.
• Customizable nameplate: Personalize your build via MakerWorld’s Make My Sign feature.
Modes Summary
| Mode | Lights | Motor | Compatible Model |
|---|---|---|---|
| 1 | Highlight 10s → steady | 1 cycle | A1 Mini |
| 2 | Highlight 10s → steady | 1 cycle (stronger) | A1 Mini |
| 3 | Breathing light | Continuous | HQ |
| 4 | Breathing light | Continuous one-way | HQ |
| 5 | 10s breathing | 10s motion | HQ |
| 6 | 10s breathing | One-way 10s | HQ |
| 7 | Off | Off | Both |

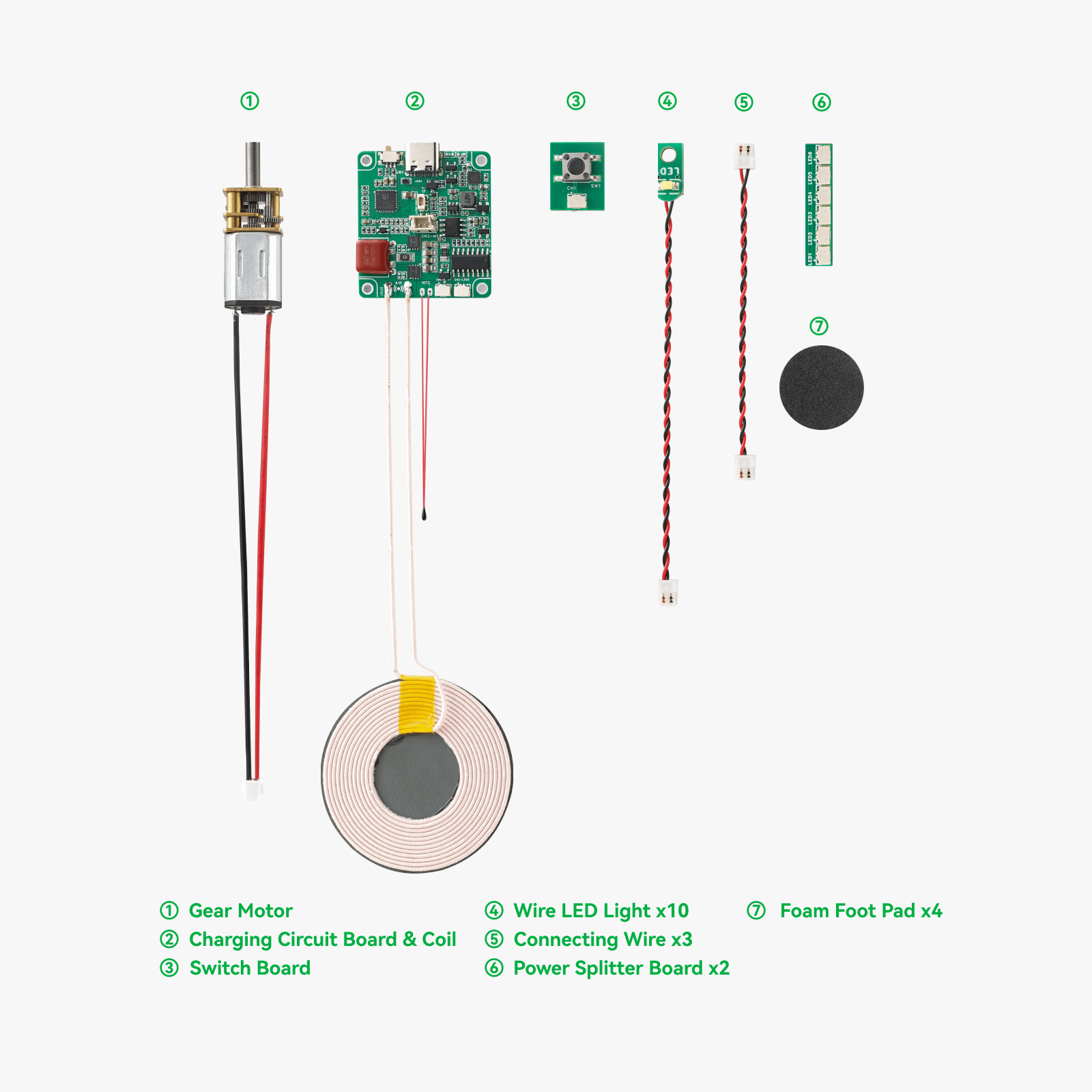

In the Box
| # | Item | Qty |
|---|---|---|
| 1 | N20 Gear Motor | 1 |
| 2 | Circuit Board & Coil | 1 |
| 3 | Switch Board | 1 |
| 4 | LED Wires | 10 (8 short, 2 long) |
| 5 | Connecting Wires | 3 (1 short, 2 long) |
| 6 | Power Splitter Board | 2 |
| 7 | Foam Foot Pads | 4 |

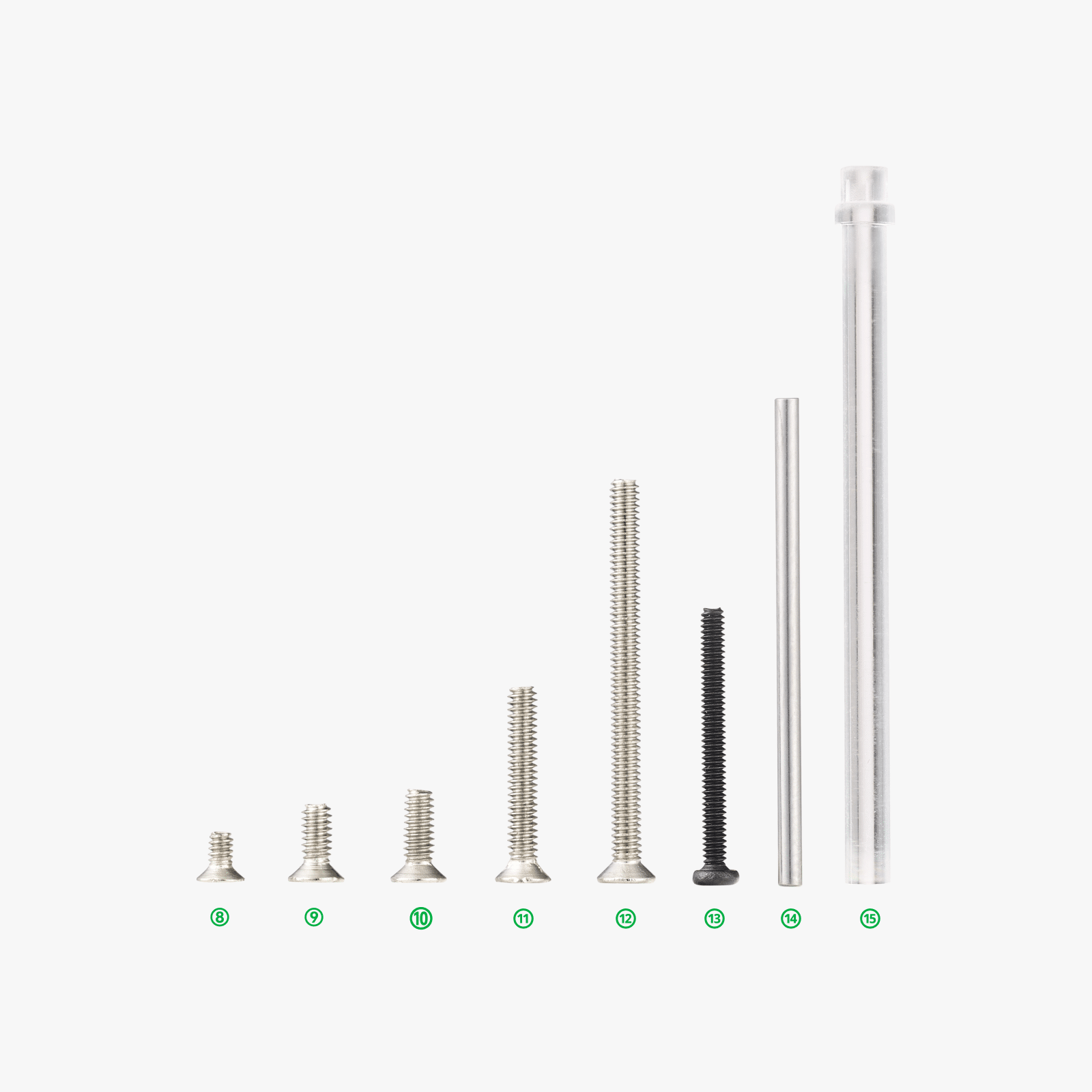

| 8 | M1.6×3 CHCS | 2 |
| 9 | M2×5 CHTS | 7 |
| 10 | M2×6 CHTS | 10 |
| 11 | M2×12 CHTS | 15 |
| 12 | M2×25 CHTS | 6 |
| 13 | M1.6×16 BHCS | 14 |
| 14 | M1.5×30 Dowel Pin | 7 |
| 15 | Light Guide Rod | 2 |
Specifications
| Parameter | Value |
|---|---|
| Charging Power | 5–15 W |
| Input | DC 12 V 2 A |
| Weight | 72 g |
| Package Size | 100 × 70 × 35 mm |
Assembly Notes
• Use basic tools (PH screwdriver, cutters, tweezers, adhesive).
• Handle wiring carefully; avoid bending light leads sharply.
• Do not adjust internal potentiometers or blue knobs.
• Allow cooling time if base overheats during setup.
